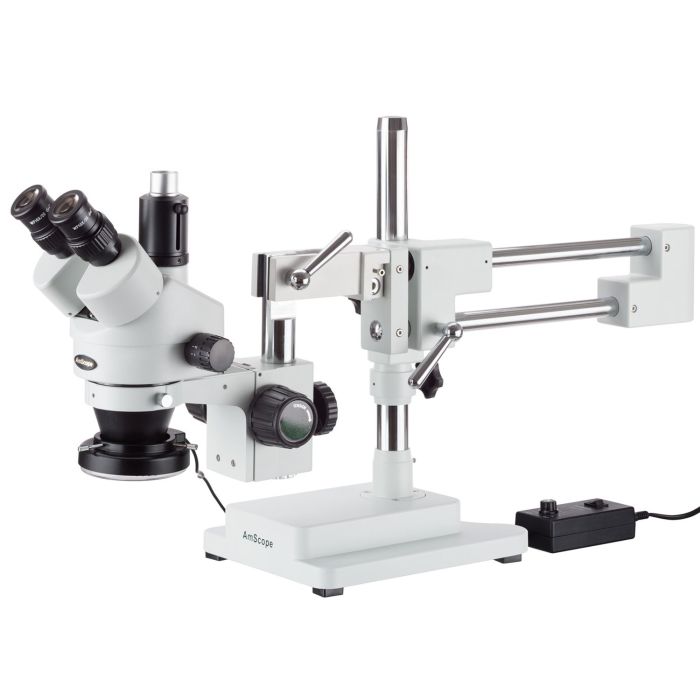

AmScope - 7X-45X Simul-Focal Stereo Zoom Microscope on Dual Arm Boom Stand + 144-LED Ring Light - SM-4TP-144

The SM-4TP is a heavy-duty, highly-flexible microscope designed for biological and industrial applications.

This model is especially popular in the QC, repair and engraving industries thanks to its ease-of-use and reliability. With its wide zoom range and double-arm boom-stand, this model will become an indispensable instrument in any workshop or lab. The trinocular photo-port is simul-focal, so it can be used simultaneously with both eyepieces.

Optics

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

Simul-focal Trinocular Port

The simul-focal optics in this microscope allow the trinocular port to be used simultaneously with both eyepieces. This means a camera can stream live images from the microscope while you continue to work with full stereoscopic vision. This is accomplished by sharing the left objective lens with the left ocular and the photo-port. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.

Double-arm Boom-Stand

The multi-pivoting, double-arm stand provides a stable, flexible support system

, ideal for hands-on work. Use of a drop-down column allows the head to be positioned at virtually any angle. Ball-bearing provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.

This package includes a 144-LED ring-light for bright and cool illumination. This lightweight illuminator mounts to the microscopes objective housing, and projects a smooth, encompassing field of light over objects, eliminating most shadows. For added convenience, a separate power-controller is used to manage the brightness. Whether used as the sole light-source or in combination with additional illuminators, the ring-light produces a crucial light pattern for virtually any application. Energy-efficient and producing low heat, this ring-light can be used with biological specimens as well as industrial.

Specifications

Microscope Head Head Type Simul-focal trinocular, 45 incline, 360 rotatable Optical System Greenough stereoscopic Interpupillary Adjustment Compensation-free gemel, 54-76mm Ocular-port Diameter 30mm Dioptric Adjustment Both oculars, 5dp Eyepieces 10X Photo Port height-adjustable 23mm tube, CX series, simul-focal Objective Lenses 0.7X-4.5X zoom Native Field-of-View 4.4mm-28.6mm Native Working Distance 100mm Auxiliary Lens Mount 48mm thread Auxiliary (Barlow) Lenses Included 48mm thread: none included Stand Stand Type Double-arm boom-stand with ball-bearing movement, cast-steel base Stand Dimensions 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2" Focusing-block Focus Range 50mm

Packing List:

One trinocular stereo microscope head

One trinocular stereo microscope head

One photo port attachment

One photo port attachment

One pair 10X eyepieces

One pair 10X eyepieces

One pair eye-guards

One pair eye-guards

One double-arm boom-stand with focusing rack

One double-arm boom-stand with focusing rack

One LED ring-light

One LED ring-light

One power controller

One power controller

One power cable

One power cable

One ring-light mounting adapter

One ring-light mounting adapter
