OMAX 40X-2000X USB3 14MP Plan Trinocular Compound Lab Research Microscope with Super Bright LED
$1,456.99
In stock
Only %1 left
SKU
B00ZAS7YTC
Total magnifications: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X; Eyepieces - Widefield WF10X/18 - Widefield WF20X; Objectives: DIN achromatic plan field - PLAN 4X / 0.10, 160 / 0.17 - PLAN 10X / 0.25, 160 / 0.17 - PLAN 40X / 0.65, 160 / 0.17, Spring - PLAN 100X / 1.25, 160 / 0.17, Spring, Oil; Viewing head - Trinocular Siedentopf 30 degrees inclined 360 degreesrotatableTotal magnifications: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X; Eyepieces - Widefield WF10X/18 - Widefield WF20X; Objectives: DIN achromatic plan field - PLAN 4X / 0.10, 160 / 0.17 - PLAN 10X / 0.25, 160 / 0.17 - PLAN 40X / 0.65, 160 / 0.17, Spring - PLAN 100X / 1.25, 160 / 0.17, Spring, Oil; Viewing head - Trinocular Siedentopf 30 degrees inclined 360 degreesrotatableTotal magnifications: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X; Eyepieces - Widefield WF10X/18 - Widefield WF20X; Objectives: DIN achromatic plan field - PLAN 4X / 0.10, 160 / 0.17 - PLAN 10X / 0.25, 160 / 0.17 - PLAN 40X / 0.65, 160 / 0.17, Spring - PLAN 100X / 1.25, 160 / 0.17, Spring, Oil; Viewing head - Trinocular Siedentopf 30 degrees inclined 360 degreesrotatableInterpupillary 55 - 75mm ( 2-3/16inch ~ 2-15/16inch ) - Diopter is adjustable on left ocular tube - Pull-out bar to switch between ocular tube and photo tube; Nosepiece: reversed revolving quadruple nosepiece; Stage - Double layer mechanical stage - Long clips holding two parallel slides - Measures 140 x110mm ( 5-1/2inch x 4-1/4inch ) - Translation range 78 x 52mm ( 3inch x 2inch )Condenser - Abbe condenser NA1.25 - Rack and pinion adjustment - With iris diaphragm - With filter holder; Focus: - Coaxial coarse and fine focus knobs on both side with tension control - With moving-up stop for protecting objective and slide; Illumination: transmitted, 5W LED lamp, variable intensity; Power supply: AC 100 - 240V, 50/60HzUSB3 Digital camera - true color 4096x3288 pixels (14M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 6.2fps at 4096x3286, 54fps at 1024x822 - Software compatible with Windows XP/Vista/7/8/10, Mac OS X and Linux (2.6 and later) operating systems - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB3 cable included5-year warranty against manufacturing defects

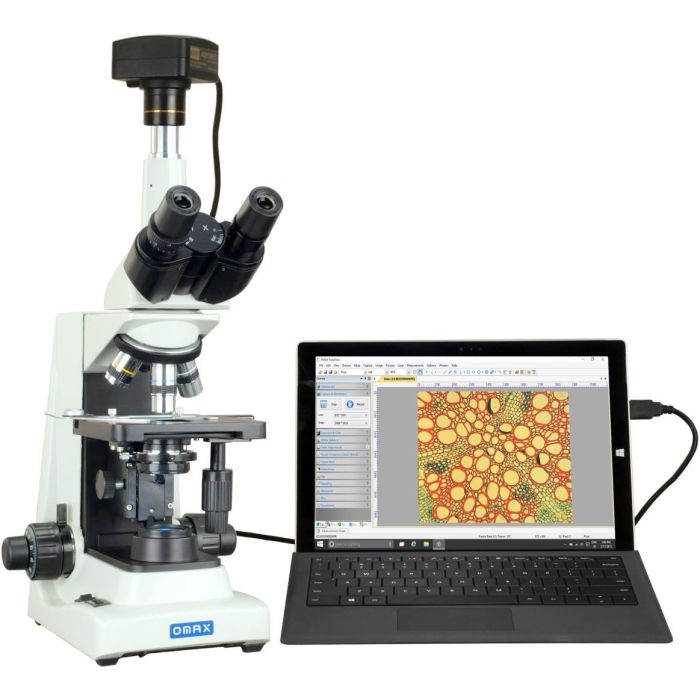

This trinocular biological laboratory microscope package boasts a super speed 14MP USB 3.0 digital microscope camera interface and a super bright 5W LED light source (about as bright as a 50W halogen lamp). The trinocular viewing head has hinged eyetubes for a compensation free interpupillary distance adjustment, and adjustable photo tube, and active light path selection (binocular or trinocular viewing mode). The super bright LED provides additional light intensity range. The quadruple rotating nosepiece, four PLAN DIN objectives (4X, 10X, 40X, 100X), double-layer ruled mechanical stage, solid sturdy metal frame, NA1.25 Abbe condenser and two pairs of eyepieces WF10X/18 and WF20X) round out the remainder of the microscope package. You can also add phase contrast or darkfield accessories to upgrade your microscope (sold separately). This top level lab microscope is designed for research laboratories and advanced applications in clinical offices.
